Product features :

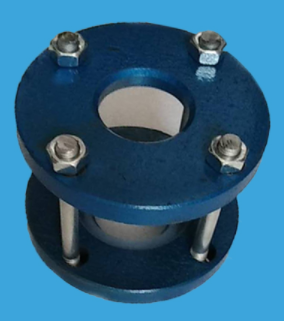

The clamp sight glass is one of the main accessories on the industrial pipeline device. The clamp sight glass installed on the pipeline can observe the flow reaction of liquid, gas, steam and other media in the pipeline at any time, monitor production, and avoid accidents in the production process. It is often used in petroleum, chemical, chemical fiber, pharmaceutical and other production pipelines
The difference between the clip on mirror and the conventional straight through mirror is that the number of fastening screws is reduced, which means that the pressure on use is inferior. Due to the limitation of the structural style, the caliber above DN80 is very rare because there is almost no pressure on use for such a large caliber, while the small caliber is relatively high
The main materials of the clip mirror are carbon steel 304 stainless steel 316321316L, etc
The use temperature of the clip mirror depends on the material of the window, which is 0-200 degrees of tempered glass; 0-450 ° for high borosilicate glass; Quartz glass 0-600 degrees
Flange thread welding is the most commonly used connection method of clip mirror, and other connection methods can also be customized
Polyethylene tetrafluoroethylene sheet is used as the sealing gasket of the clip mirror
