Product features:

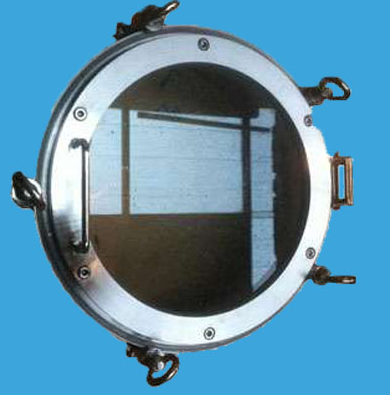

It is a kind of flange pressure manhole, also known as pressure manhole. The manhole cover is composed of a piece of glass sandwiched by a flange, which makes it easier to observe the material operation in the equipment container. The operating pressure is about 0.25MPa, which can be customized according to customer requirements. When installing the nuts on the manhole cover plate, evenly apply force diagonally in pairs to prevent the glass from being damaged due to the deformation or uneven force of the cover plate. All pressure vessels or non pressure vessel manholes adopt quick opening structure, which is easy to open, safe, beautiful and practical.
Product attributes
Structural form: round, quick opening structure, connected by two flanges. A mirror is installed on the manhole cover. Material: SUS304, 316L, etc. Size: nominal diameter DN150mm - 600mm (non-standard products can be processed according to the drawings and sample sizes required by users) Finish: mirror polishing of internal and external surfaces
Other instructions
This product can meet the special requirements of various media in the fields of food and biopharmaceutical, and is widely used in large stainless steel cans and containers in dairy products, beer, food, beverage, pharmacy, bioengineering and other industrial fields.
