Product features:

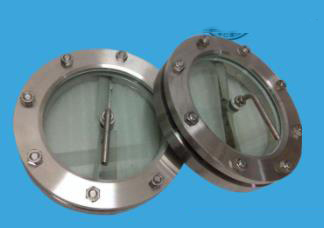

Brief introduction of scraper mirror Scraper mirror is a type of flat mirror, also known as scraper mirror, with brush mirror. It is applicable to industrial containers such as petroleum, chemical, food, etc. It is used to observe and monitor the working reaction of the medium inside the container to ensure production safety and product quality Features of scraper mirror When the conventional flange mirror is used on some medium with high viscosity, the glass lens will stick to the medium, which will affect the clarity of observation and directly affect the quality of the product. Originally, the only way to do this is to disassemble the mirror and then clean the glass lens. However, the container must be stopped first, which is very time-consuming and affects the production progress The advantage of the scraper mirror is that it does not have to stop working. When the mirror has dirt, you can directly turn the handle on the mirror to remove the dirt on the mirror, which saves cleaning time, labor hours and production efficiency as much as possible
Basic parameters of scraper mirror Shell material: carbon steel WCB, stainless steel 304, 321, 316, 316L. Window material: tempered borosilicate glass, quartz glass. Sealing material: nitrile rubber, polytetrafluoroethylene, high-temperature resistant graphite. Working pressure (MPa): 0-2. 5 Working temperature (℃): 0~200 ℃
