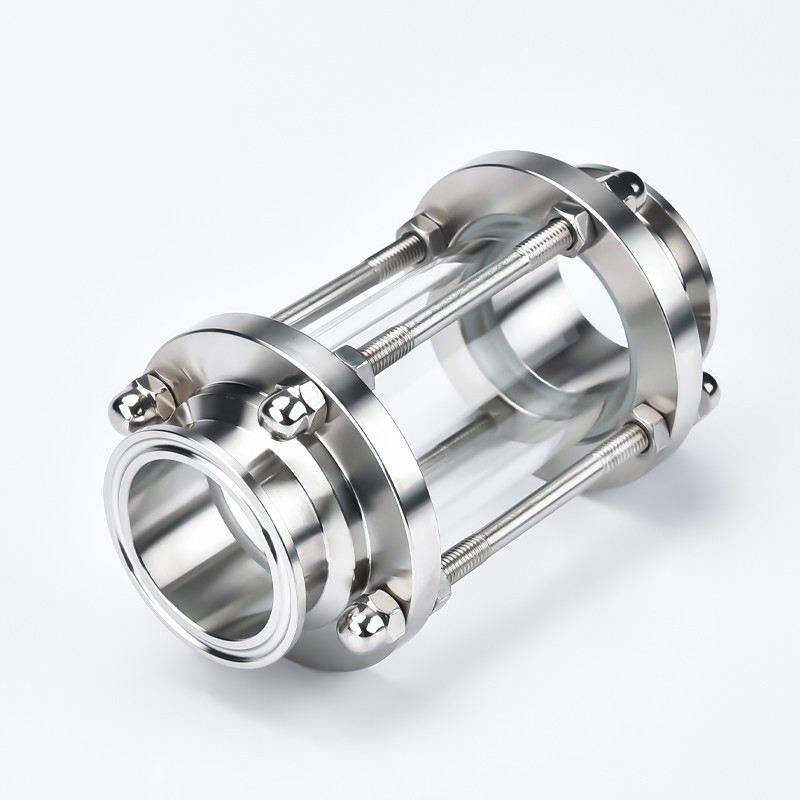

In the production pipelines of food and beverage, pharmaceuticals, and fine chemicals, there is an inconspicuous but crucial accessory, which is the quick installation pipeline sight cup shown in the picture, also known as the pipeline sight glass. It is like a transparent window of a pipeline, allowing the state of the medium inside the closed pipeline to be clearly visible, and is an indispensable monitoring component for modern process production.
From the perspective of appearance and structure, the main body of this sight cup is composed of a 304/316 stainless steel metal frame, a high permeability borosilicate glass tube, fastening rod bolts, a quick release chuck interface, and a sealing gasket combination. Both ends are connected using sanitary grade quick release clamps, which are easy to disassemble and assemble without the need for welding, making them convenient for disassembly, cleaning, and maintenance; Multiple stainless steel pull rods around firmly press the flanges at both ends to protect the middle glass tube, resist pipeline pressure, and prevent glass damage under pressure; The middle transparent borosilicate glass tube is temperature and impact resistant, allowing for 360 degree observation of the internal conditions of the pipeline.
Its core function is to visually monitor the internal working conditions of pipelines. The flow of materials inside the closed pipeline, the generation of bubbles, the turbidity of materials, the reaction state, and the presence or absence of medium circulation can all be visually observed through glass. Operators can real-time monitor the flow status of liquids and gases in pipelines without the need to shut down or disassemble them, and promptly detect issues such as flow interruption, gas mixing, impurities, and abnormal reactions to avoid production failures and ensure stable operation of the process flow.
Thanks to its hygienic design, the inner wall is polished smooth without dead corners, suitable for CIP online cleaning and SIP high-temperature sterilization, without residual materials or bacterial growth, in line with strict hygiene production standards, and has a wide range of application scenarios. The food and brewing industry is used to observe the transportation status of beverages, alcoholic beverages, and sauces; In the pharmaceutical industry, monitor the transportation process of drug solutions and solvents; Fine chemical engineering, observing the flow of various solvent materials; It is also widely used in the process pipelines of industries such as dairy products, cosmetics, and water treatment.
Compared to flange welded sight glasses, the biggest advantage of quick installation sight glasses is that they are easy to disassemble and assemble. Maintenance, gasket replacement, and internal cleaning can be easily removed by simply loosening the clamps, significantly reducing maintenance costs. Borosilicate glass has good heat shock resistance, stainless steel shell is corrosion-resistant, and is suitable for most neutral and weakly corrosive medium working conditions. However, when using it, it is also necessary to avoid severe temperature changes, avoid overpressure operation, and prevent the risk of glass cracking.
In the entire fluid process system, the sight cup cannot be considered as the core host equipment, but it bears the key responsibility of "visual monitoring". Turning the invisible interior of the pipeline into visible, allowing operators to have a clear understanding of the process status, a small sight cup, and safeguarding the stability and quality of the entire production line.、
