In complete industrial pipelines such as chemical, food, pharmaceutical, and water treatment, there is an inconspicuous but crucial component hidden, which is the square straight through flange sight glass, also known as the pipeline observation window or straight through sight cup. It is an indispensable safety monitoring component in modern process industries.

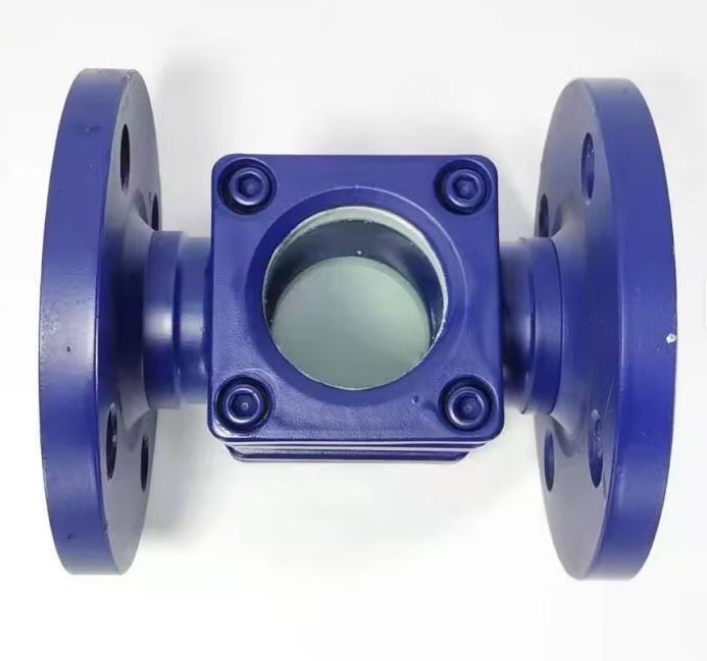

From the appearance, this mirror adopts the classic structure of two end flange docking and a square valve body in the middle. The deep blue carbon steel shell is sturdy and heavy, and the four fastening bolts firmly press the tempered borosilicate glass window. The flange structure can be directly docked to the process pipeline, with stable installation and convenient disassembly and maintenance. Unlike traditional circular mirrors, square valve bodies provide a wider observation field, allowing staff to visually see the true state of the medium inside the pipeline without having to dismantle the pipeline.
Its core value is to achieve visual production monitoring. Most industrial pipelines operate in a closed manner, with liquids, gases, vapors, or materials containing particles flowing inside the pipeline, making it difficult for operators to directly determine the operating conditions. After installing the straight through mirror, we can observe the medium flow rate, liquid color change, bubble generation, and impurity precipitation in real time to confirm whether the material is transported normally and whether the reaction meets the standard. Once faults such as flow interruption, turbidity, and abnormal foaming occur, on-site personnel can detect the problem in a timely manner, deal with hidden dangers in advance, avoid shutdown accidents and material loss, and safeguard the first line of defense for process safety.
In terms of material and performance design, it fully adapts to complex and demanding industrial conditions. The main body shell can be made of carbon steel or stainless steel, and the anti-corrosion lining version can withstand acid and alkali corrosion; The window is made of tempered borosilicate glass that is resistant to high temperature and high pressure, with good transparency and resistance to thermal shock; Paired with high-performance sealing gaskets, it achieves zero leakage within the rated pressure and temperature range, meeting the regulatory requirements of multiple industries including petrochemicals, fine chemicals, alcoholic beverages, biomedicine, and wastewater treatment. The flange connection method has stronger sealing performance and is suitable for process pipelines with high pressure, ensuring stable and reliable long-term operation.
In the entire automated production line, although the mirror is small in size, it bears the responsibility of a "patrol sentinel". In the food and beverage workshop, it is used to monitor the effectiveness of ingredient delivery and pipeline cleaning; In pharmaceutical factories, ensure that clean fluids meet production standards; Real time monitoring of the status of reaction materials in the chemical plant area; Observe the mixing of sewage and chemicals in environmental water treatment projects. It does not require power supply or complex instruments, and relies on pure mechanical structure to complete visual monitoring. It is the most intuitive and reliable manual observation method outside of automated control systems.
A small glass window opens up a passage between the sealed pipeline and manual inspection. The square straight through flange sight glass, with its simple and durable structure and intuitive and efficient monitoring method, safeguards the smooth operation of industrial pipelines, becoming a low-key but irreplaceable "industrial eye" in process production.
