In industrial fields such as chemical, pharmaceutical, food and beverage, water treatment, and petroleum energy, fluid media rely on closed pipelines for transportation. The flow state inside the pipeline cannot be directly observed. Once situations such as flow interruption, impurity accumulation, and material abnormalities occur, it is easy to cause equipment idling, pipeline blockage, and even safety accidents. Square flange straight through sight glass is a specialized device installed on pipelines to visually monitor the working conditions of the medium. It is an indispensable monitoring accessory in fluid process systems.

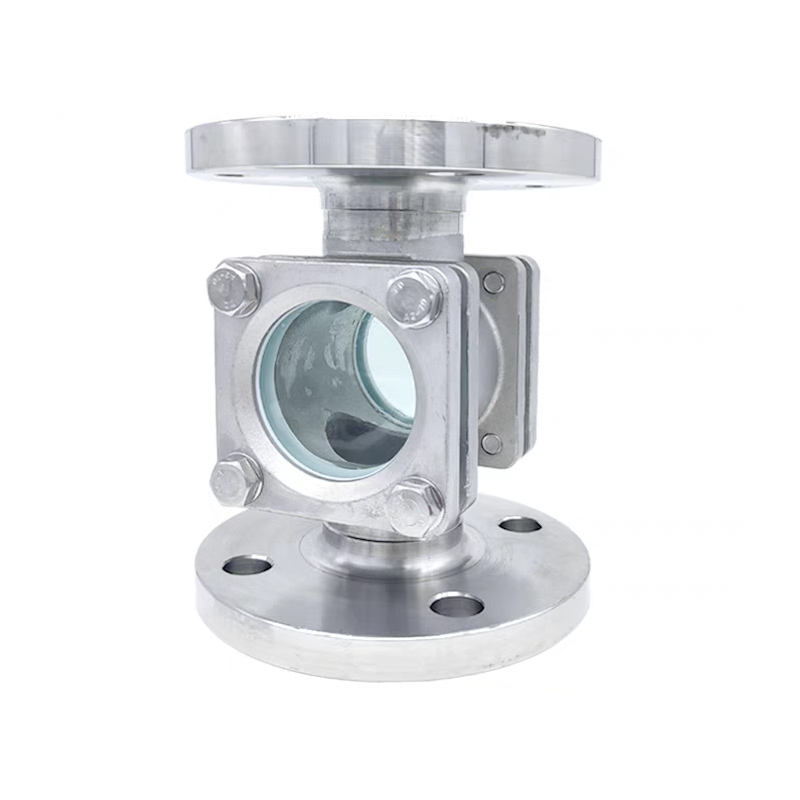

This mirror adopts a flange connection method, with a square valve body and transparent windows on both sides. It is fixed by bolts, making assembly, maintenance, and glass replacement very convenient. The main material is mostly made of 304 or 316L stainless steel, which is resistant to rust, acid and alkali corrosion, and can adapt to various media such as water, oil, and various corrosive chemical solutions; The window is made of pressure resistant tempered glass, which has excellent transparency and stable pressure and temperature resistance, meeting the needs of continuous operation of industrial pipelines.
Its core function is to achieve internal visualization of pipelines. Operators do not need to stop the machine to disassemble the pipeline. Through the glass window, they can observe the flow status of the medium in real time, check the fluid color and flow rate, and identify abnormal phenomena such as bubbles, sediments, and debris. During the production inspection process, the staff can detect pipeline abnormalities in a timely manner, identify potential faults, reduce losses from unplanned shutdowns, and ensure the stability and controllability of the entire process flow.
The square flange straight through sight glass is compatible with standard pipeline flanges, with sufficient stock of conventional specifications. It also supports non-standard customization according to working conditions, and can adjust parameters based on pressure level, medium temperature, pipeline diameter, and material characteristics. Whether it is the clean pipeline of the food production line, the reaction conveying pipeline of the chemical workshop, or the sewage circulation system, it can all play a stable monitoring role.
Many people may overlook these small pipe fittings, but a mature and reliable fluid system relies on these detailed components to maintain safety. The square flange straight through sight glass, with its simple and reliable structure, turns invisible working conditions inside the pipeline into visual information, providing intuitive basis for on-site inspection and process control, and continuously assisting in the safe and efficient operation of industrial fluid pipelines.
