In closed tanks and pressure vessels used in industrial production such as chemical, food, pharmaceutical, and water treatment, the state of the internal medium cannot be directly observed with the naked eye. The scraper flange sight glass is a core observation component specially designed to solve this pain point and is a reliable visual window in industrial equipment.
This mirror body is made of 304/316L stainless steel forged and processed, with a flange compression structure as a whole. It relies on a ring of bolts to evenly lock the tempered
glass window between the flanges, and is equipped with high-temperature and corrosion-resistant sealing gaskets, which can withstand certain pressure and temperature and are
suitable for various closed reaction vessels, storage tanks, and pipeline containers.

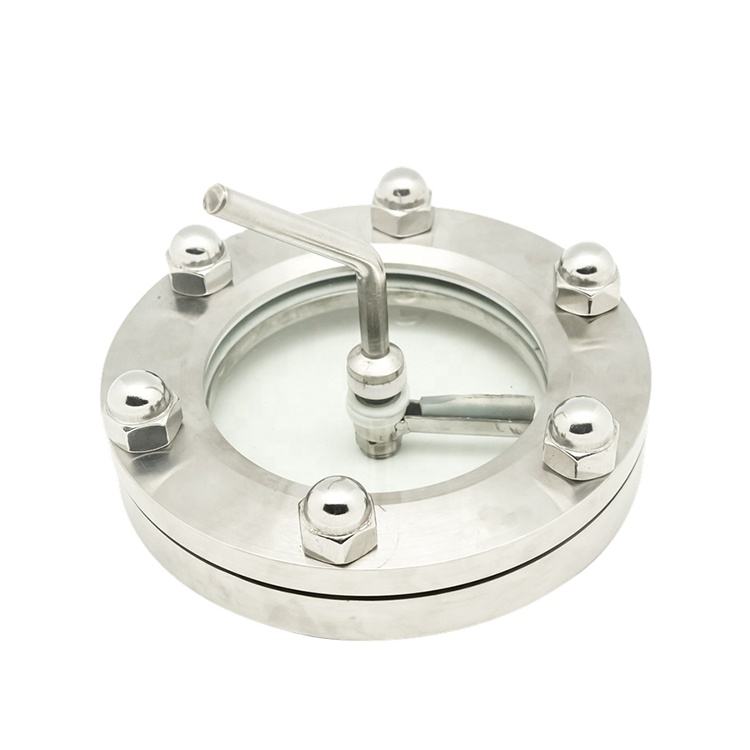

Its most distinctive design is the manual scraper component assembled at the center. In many working conditions, the materials inside the tank are prone to adhere and condense
on the inner surface of the glass, forming stains, oil films, or crystalline layers, blocking the line of sight and losing observation significance. The operator only needs to rotate the
external bend handle, and the internal scraper will rotate along the inner wall of the glass, easily scraping off the attached materials and restoring the transparency of the glass at
any time without stopping the machine or dismantling the equipment for cleaning, greatly improving the convenience of continuous production, especially suitable for working
conditions with viscous materials and easily crystallized media.
The rigorous manufacturing process endows it with stable performance. The surface of the stainless steel flange is smooth, corrosion-resistant, and not easy to rust, meeting the
hygiene requirements of the food and pharmaceutical industry; Tempered mirror glass is resistant to pressure and heat, and has good safety under medium impact and
temperature difference changes; The sealing components can be made of materials such as silicone rubber and ethylene propylene diene monomer, and are suitable for
different acid-base media and temperature ranges. The specifications can be customized according to the flange standard, with multiple diameters ranging from DN25 to DN200. The installation is simple and can be directly connected to the reserved mirror port of the equipment through flange bolts.
In the production line, the scraper flange sight glass plays an important monitoring role: the staff can view the liquid level, material mixing status, reaction process, whether
there are bubbles or abnormal precipitation in the tank in real time through the transparent window, adjust the process parameters in a timely manner, avoid risks such as
equipment idling and reaction loss of control, and provide intuitive judgment basis for the safe production of closed containers.
A small observation window, carrying the need for industrial process visualization. The scraper flange sight glass integrates pressure sealing, visual monitoring, and self-cleaning functions, balancing safety, practicality, and economy. It is an indispensable accessory in pressure vessels, reaction vessels, and storage tanks, widely serving many industries such as fine chemicals, grain and oil brewing, biopharmaceuticals, and environmental wastewater, and providing protection for production control under closed conditions.
