Product features:

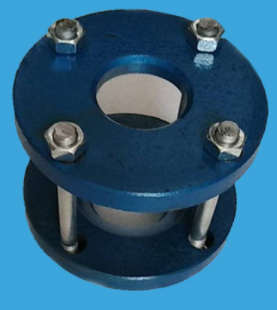

The clip-on sight glass is one of the main accessories on the industrial pipeline device. The clip-on sight glass installed on the pipeline can observe the flow reaction of liquid, gas, steam and other media in the pipeline at any time, monitor production, and avoid accidents in the production process. . Often used in petroleum, chemical, chemical fiber, pharmaceutical and other production pipelines.
The difference between the clip-on sight glass and the conventional straight-through sight glass is the reduction in the number of fastening screws, which means that the use pressure is much inferior. Due to the limitation of the structural style, the caliber above DN80 is very rare because such a large caliber is basically not available. What is the use pressure. And the small caliber is relatively high.
The main material of the clip-on mirror is carbon steel 304 stainless steel 316321316L, etc.
The use temperature of the clip-on mirror depends on the material of the window used: 0-200 degrees for tempered glass; 0-450 degrees for high borosilicate glass; 0-600 degrees for quartz glass.
The most commonly used connection methods for clip-on mirrors are flange thread welding, etc. Other connection methods can also be customized.
The sealing gasket of the clip-on sight glass adopts polyethylene tetrafluoro sheet
