Product Description：

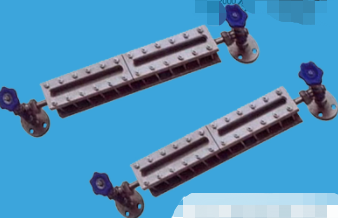

Overview of translucent glass plate level gauge:
The HG5 glass plate level gauge is produced according to the HG5-1364～1370-80 standard of the former Ministry of Chemical Industry. It is suitable for direct indication of the medium level in various towers, tanks, tanks, boxes and other containers. Safety steel balls are installed in the upper and lower valves of the instrument. When the glass plate is accidentally damaged, the steel ball can automatically close the liquid flow channel under the action of the pressure in the container to prevent the liquid from continuing to flow out.
Features of translucent glass plate level gauge:
●According to the principle of communication, the medium level in the container is led to the external glass plate level gauge, and the actual height of the liquid level in the container is directly displayed through transparent glass. The meter valve stem sealing packing adopts a flexible graphite pressure ring, and the sealing performance is reliable.
●Simple structure and convenient maintenance
●Safe and durable to use
The main technical parameters of the transparent glass plate level gauge:
Measuring range (installation center poly L): 300, 500, 800, 1100, 1400, 1700mm
Working pressure: 2.5, 4.0MPa, 0.6MPa (for R type)
Material: carbon steel, stainless steel
Working temperature: -20～+200℃
Automatic closing pressure of steel ball: ≥0.2MPa
For industry:
Widely used in power stations, oil refining, chemical, fertilizer, metallurgy, mining, papermaking, environmental protection, municipal construction and other industries
