Company introduction：
Xinxiang Xinbo glass quartz products Co., Ltd.: it is a company specializing in the production of chemical glass instruments and meters integrating development, design, production, sales and after-sales service. The company has a modern management team. With advanced management methods and service concepts and relying on the advantages of local government policies, talents and environment, the company has become a well-known enterprise in the industrial glass instrument industry. The quartz glass tube, quartz glass mirror, quartz flange, high borosilicate glass mirror, tempered glass mirror, liquid level gauge glass plate, stainless steel flange mirror cup and other products produced by the company have formed a series of products used in the industrial boiler pipeline industry. A strong design team can undertake the processing and customization of various non-standard and unconventional glass mirrors, flange mirror cups and other products.

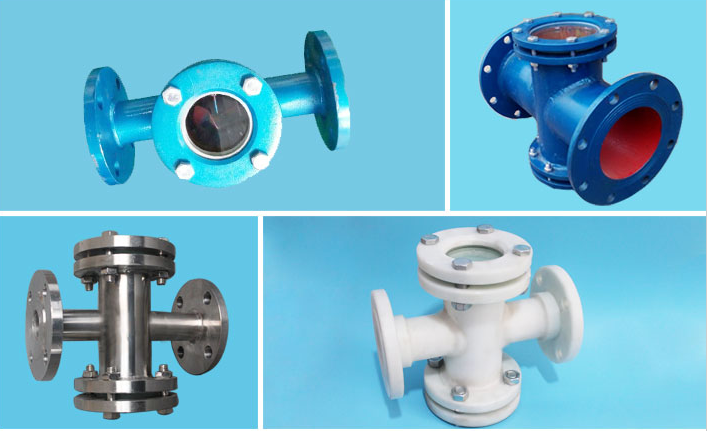

Product picture：
Product description：
Generally speaking, there are two kinds of pipe through glass mirrors, one is glass pipe through glass mirror, the other is glass plate through glass mirror
The pipe is directly connected to the glass mirror, which is used for liquid drainage or return in front of the receiving tank, cooling water and other liquid pipelines to observe the liquid flow.
Valve body materials: carbon steel, stainless steel, PVC, etc.
Nominal pressure range: 2.5 and 6 kg / cm2.
Working temperature: metal ≤ 200 ℃, allowable sudden change temperature 80 ℃
Nominal diameter: DN15 ~ DN150
The mirror glass is made of tempered glass.
The above is a brief introduction of pipe through glass mirror. For more details, please contact us.
