In many industrial production scenarios such as chemical, pharmaceutical, food processing, and water treatment, pipelines are the lifeblood of conveying media. The state of the fluid inside the pipeline cannot be directly seen by the naked eye, and once there are abnormalities such as blockage, bubbles, and impurity precipitation, it is difficult to detect them at the first time. Stainless steel four-way straight through sight glass is a key fitting installed on the pipeline to help us observe the internal working conditions of the pipeline. It is an indispensable observation window in industrial pipeline systems.

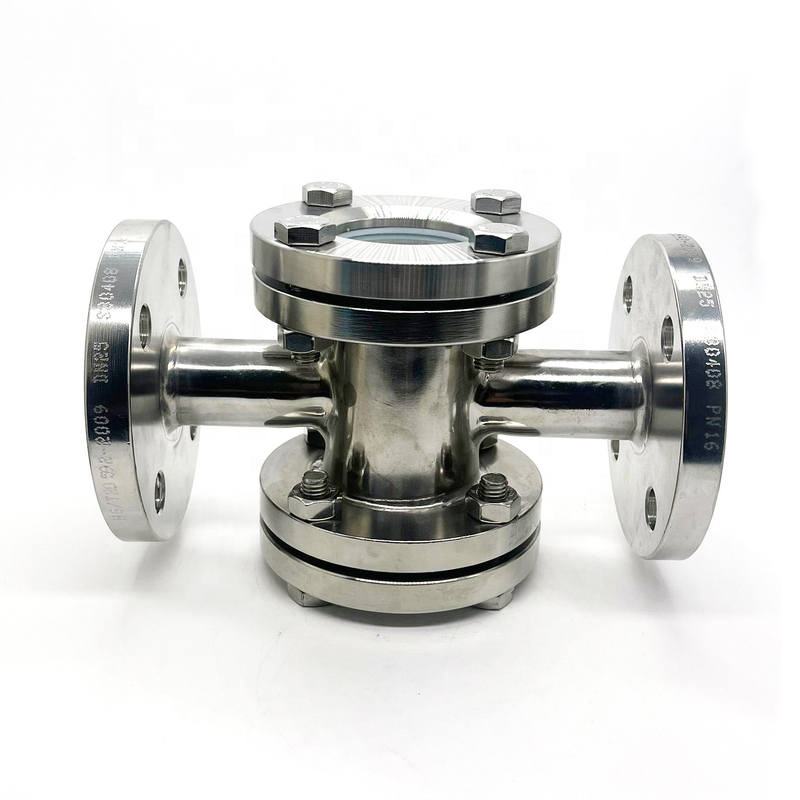

Four way straight through sight glass, also commonly known as a cross shaped tube sight cup, is mainly made of 304 or 316 stainless steel material and paired with high borosilicate tempered glass as the observation window. By adopting a flange connection method, industrial pipelines can be directly connected in series. Unlike ordinary one-way mirrors, it has a two-way observation window and combined with the medium flow channels on both sides, it can achieve multi angle observation. Operators do not need to disassemble the pipeline, and can intuitively see the flow status of liquid, steam, and gas inside the pipeline through the glass.
From a structural perspective, it mainly consists of a stainless steel valve body, high borosilicate window glass, sealing gasket, compression flange, and fastening bolts. Stainless steel valve body has excellent corrosion resistance and can adapt to complex working conditions such as acid and alkali, high temperature, etc; High borosilicate glass has high temperature resistance, high pressure resistance, and excellent transparency, ensuring clear observation and withstanding pipeline pressure; The sealing gasket and clamping bolt cooperate with each other to firmly clamp the window, ensure the sealing of the pipeline, and prevent medium leakage.
Its applications cover multiple industries. In chemical production, it is used to observe the transportation of reaction materials and timely detect sedimentation and impurity accumulation in pipelines; In the food and pharmaceutical industry, sanitary grade stainless steel materials meet clean production standards and monitor the operating status of liquid medicine, pure water, and food fluids; Observe the flow of circulating water and steam in boilers and water treatment systems, and troubleshoot issues such as gas blockage and liquid accumulation; In petroleum and environmental light industry equipment, it is also relied upon to achieve online monitoring of fluids, in order to avoid production hazards caused by pipe blockages and abnormal media in advance.
Although four-way straight through mirrors do not have valve functions for switching or regulating fluids, they have irreplaceable value. It achieves online visualization of pipeline operating conditions, allowing for quick understanding of the internal conditions of pipelines without the need to shut down or disassemble equipment. This helps workers detect potential faults in advance and reduces the risk of equipment damage and production accidents. The design of flange docking is very convenient for installation, whether it is new pipeline construction or old pipeline renovation.
Daily use also requires proper maintenance. Knocking and collision are strictly prohibited on the window glass to prevent it from shattering; Regularly check the sealing gasket and replace it in a timely manner if there is aging or deformation; When selecting, the temperature and pressure of the pipeline medium should be combined to match the corresponding pressure level; If the medium contains hard particle impurities, it will wear down the window glass and require regular cleaning of the window surface.
The small four-way straight through mirror silently guards the safe operation of industrial pipelines. It turns the invisible fluid changes inside the pipeline into visible reality, providing a simple and reliable structure to safeguard industrial production.
