Product Description：

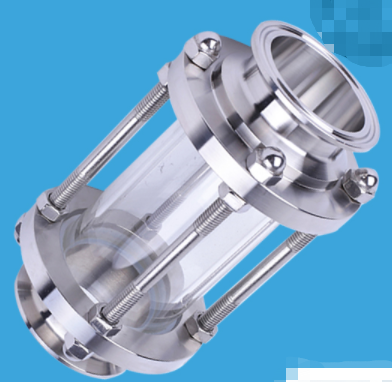

The sanitary pipe sight glass has a small installation size, small driving torque, simple and fast operation, and also has a good flow adjustment function and closing and sealing characteristics. The sight glass is used in large and medium diameter, medium and low pressure applications. The dominant view mirror form.
Uses: Sanitary sight glasses can be used in high temperature, strong corrosive, easy to be poisoned, dangerous, easy to crystallize chemical towers to ensure their safe production.
Structure: Sanitary sight glass is mainly composed of sight glass bottom plate, sight glass, valve components, etc. [1]
How to useedit
⑴Cleaning treatment. Before use, you can use an appropriate amount of alcohol cotton to gently wipe the surface. Note: Do not use acidic liquids for cleaning, so as not to corrode the outer surface of the glass.
⑵To choose the gasket correctly. When the ambient working temperature is within 280°C, asbestos pads or PTFE pads can be used. When the ambient working temperature exceeds 500°C, graphite gaskets are recommended. Note: The thicker the glass, the thickness of the gasket should be increased accordingly.
⑶ Apply evenly. Do not use excessive force or excessive force during installation. It is recommended to tighten the screws evenly and diagonally.
⑷ Regular inspection. After the installation of the sight glass, regular inspection must be done, especially in the liquid environment containing acid and alkali, and the corrosion degree of the glass surface must be checked regularly to ensure the safety of front-line operators. [1]
Maintenanceedit
1. The sight glass is a flow reaction equipment used to observe liquid, gas, steam and other media, and its window glass should be kept clean and dust-free;
2. The window glass of the sight glass is suitable for damage, so be careful when installing the sight glass;
3. There should be a gasket between the metal and the metal for sealing and anti-vibration.
