Product features：
The pipe glass fiber reinforced plastic mirror has super corrosion resistance, and its strength is not much worse than that of metal materials. The glass fiber reinforced plastic mirror is made of glass fiber and its products (glass cloth, tape, felt, yarn, etc.) as the reinforcing material, and is made of synthetic resin. A composite material of the matrix material. The price of glass fiber reinforced plastic glass is cheaper than that of metal and lined glass, and the service life is not far away.At the same time, it has a 360-degree full viewing angle.It is the best choice for corrosive pipelines in the chemical industry and other industries.
The main purpose of the pipe glass fiber reinforced plastic viewing cup:
FRP sight glass is used in industrial production pipelines such as petroleum, chemical industry, chemical fiber, medicine, food, etc., and can observe the flow reaction of liquid, gas, steam and other media at any time. According to the observed situation, the production schedule can be specifically arranged according to the observed situation. Indispensable accessories to ensure normal production.
The basic use parameters of the pipe glass fiber reinforced plastic viewing cup:
Working pressure 0-6 kg;
Use temperature 0-100 degrees;
The flange uses standard HG5010-50, PN10;
Maintenance and maintenance of pipe glass fiber reinforced plastic viewing cup:
1. The glass fiber reinforced plastic sight glass is used to observe the flow reaction equipment of liquid, gas, steam and other media, and its window glass should be kept clean and dust-free;
2. The window glass of the glass fiber reinforced plastic viewing cup is a wearable part, and it must be handled with care when installing the viewing glass;
3. The temperature and pressure resistance of window glass has certain limitations. Pay attention to the limit data of the pipeline;
4. The allowable sudden change temperature is less than 60℃, and the glass will break due to excessive temperature difference. Please pay attention to maintenance.

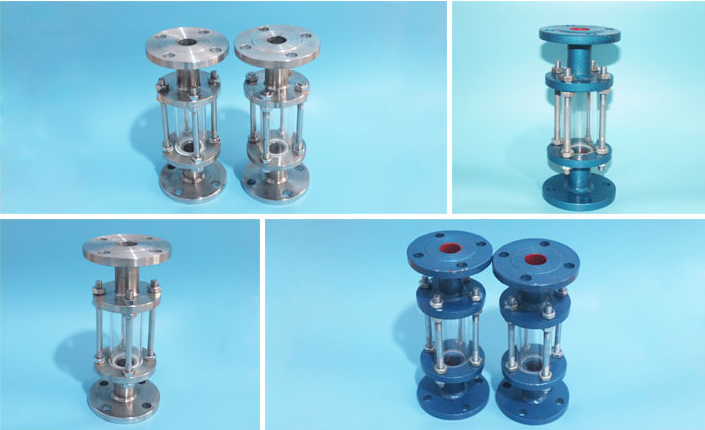

Product details：
Precautions for ordering glass fiber reinforced plastic cups for pipes:
1. Firstly, determine the service conditions of the pipeline, such as temperature, pressure, corrosivity, etc., and analyze whether the FRP visual cup can be selected;
2. Secondly, determine whether the diameter of the pipe and the installation size of the FRP cup meet the requirements;
3. Once the above points are confirmed, you can communicate with the manufacturer and place an order
For industry:
FRP visual cup is used in industrial production pipelines such as petroleum, chemical industry, chemical fiber, medicine and food. It can observe the flow reaction of liquid, gas, steam and other media at any time. According to the observed situation, it is an indispensable accessory to ensure normal production.
