Company introduction：
Xinxiang Xinbo Glass Quartz Products Co., Ltd.: is a professional chemical glass instrument production company integrating development, design, production, sales and after-sales service. The company has a modern management team, relying on advanced management methods and service concepts, relying on local government policies, talents, environment and other advantages, has become a well-known enterprise in the industrial glass instrumentation industry. The company’s quartz glass tube, quartz glass sight glass, quartz flange, high borosilicate glass sight glass, tempered glass sight glass, liquid level gauge glass plate, stainless steel flange sight glass and other products have formed the industrial boiler pipeline industry. Serialized products used. The powerful design team can undertake the processing and customization of various non-standard and unconventional glass mirrors and flange mirrors.
The sight glass products produced by our company conform to industry standards. They have the advantages of good transparency, beautiful appearance, accurate tolerances, pressure and temperature resistance, explosion-proof and crack-proof, etc. They are widely used in metallurgy, chemical industry, coal, heavy industry, shipbuilding, light industry and other fields. . At present, the sight glass produced by our company is sold to various cities in China, and has been exported to more than 20 countries and regions including the United States, Britain, Japan, Germany, Thailand, the Netherlands, South Africa, Syria, Turkey, and Nepal. Successfully built the "Boji" industrial mirror glass industry benchmark brand. In the future, we will work hard to invest more capital and energy to attract better talents and contribute to the development of China's industrial mirror glass field.
Product Description：

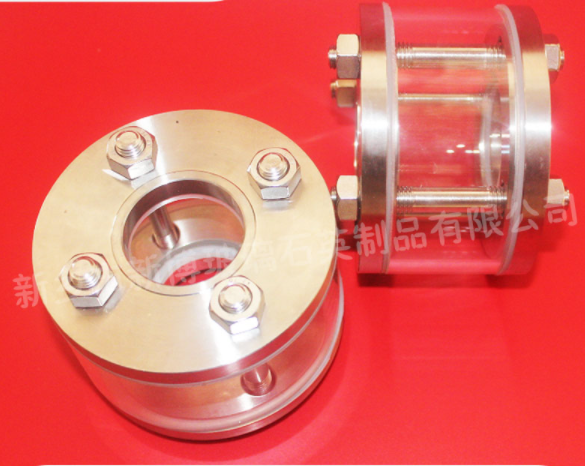

Stainless steel glass tube flange sight glass (straight through sight glass): it is used on the solid flow, cooling water and other liquid pipelines in front of liquid discharge or tank to observe the liquid flow. Valve body materials: carbon steel, stainless steel, rubber lining, fluorine lining, etc. Nominal pressure range: 2.5 and 6 kg / cm2. Working temperature: metal ≤ 200 ℃, plastic ≤ 80 ℃, allowable sudden change temperature: 80 ℃, nominal diameter: DN15 ~ dn150cm.
Overview of glass tube mirror cup products:
Glass tube flange mirror is one of the main accessories on industrial pipeline devices. In the pipelines of industrial production devices such as petroleum, chemical industry, medicine and food, the mirror can observe the flow and reaction of liquid, gas, steam and other media in the pipeline at any time, so as to monitor production and avoid accidents in the production process.
Main technical parameters of glass tube mirror Cup:
Shell material: carbon steel WCB, stainless steel 201, 304, 321, 316, 316L, steel lining PTFE.
Window material: tempered borosilicate glass, quartz glass.
Sealing material: nitrile rubber, polytetrafluoroethylene.
