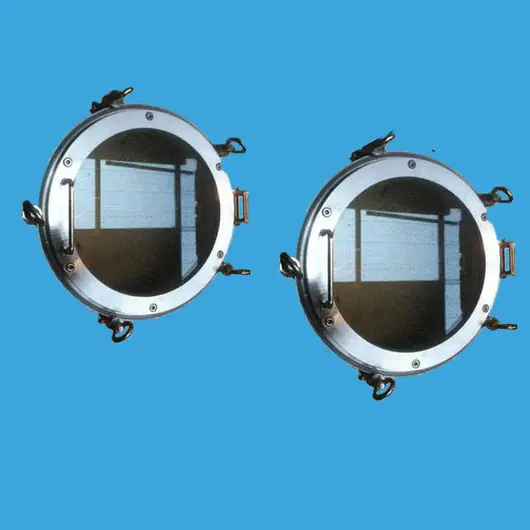

NB/T47017-2011 pressure vessel sight glass, also known as stainless steel equipment sight glass, stainless steel flange sight glass. It is a kind of stainless steel used to observe the change of medium in chemical, petroleum, oil refining, food, cosmetics, medicine and other industrial equipment containers. glass. The operator adjusts or controls the medium according to the situation displayed by the pressure vessel sight glass, so as to ensure that the medium in the vessel is always within the normal range to ensure the safety of production and the quality of the product.
In addition, liquefied gas storage tanks, tank trucks, gas-liquid reactors, reaction kettles and other containers need to be equipped with pressure vessel sight glasses to prevent accidents due to overfilling or unbalanced material reactions due to overfeeding.
yle="height: 600px; width: 600px;" x="" />yle="width: 600px; height: 600px;" />
Overview of Wafer Connection Lift Check Valve
Wafer double flap check valve The H76X type wafer check valve produced by our factory is composed of valve body, valve flap, valve stem and spring, etc., which are connected by a wafer. Due to the short closing stroke of the disc and spring loading, water hammer can be significantly reduced. The valve is mainly suitable for water supply and drainage pipe networks in cities, industries and high-rise buildings. Because its structure length is shorter than that of general check valves, it is most suitable for places with limited installation space.
Product Features of Wafer Connection Lift Check Valve
1. Small size, light weight, compact structure and convenient maintenance
2. The valve plate adopts a dual type, which can be quickly closed under the elastic force of the spring.
3. Due to the quick closing effect, the medium can be prevented from flowing back
4. The length of the valve body structure is small and the rigidity is good
5. Safe and convenient, can be used for horizontal and vertical installation
Performance Parameters of Wafer Connection Lift Check Valve
model
Working pressure (MPa)
Applicable temperature (℃)
Applicable medium
Body material
H76H-10C～40
1.0～2.5
-29～425
Water, steam, oil
Carbon steel
H76W-10P～25
1.0～2.5
≤150
Nitric acid
Stainless steel
H76x-40P
16--2.5
≤150
Nitric acid
Stainless steel yle="width: 800px; height: 800px" />
the function of sight glass
contact us
Tel/whatsapp: +86 13373730761
Email: landlee@sightglassfactory.com

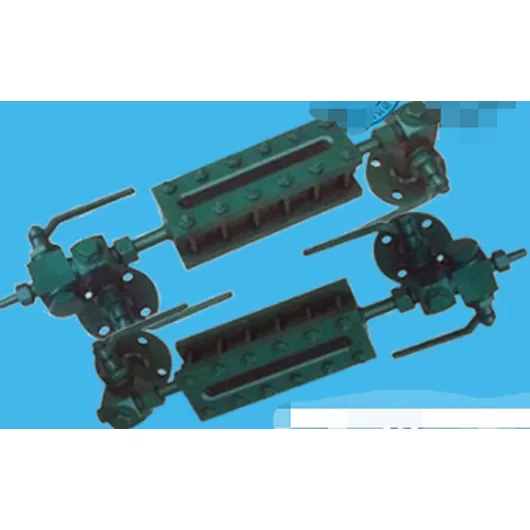

X49H-16C cock glass plate level gauge
【Overview】
The X49H-16C glass tube level gauge is an intuitive liquid level measuring instrument, which can be installed on a boiler or other pressure vessel to directly indicate the liquid level of the measured medium.
[Working Principle and Structural Features]
The upper and lower plug valves of the instrument are welded with flanges to connect with the container to form a communicating device, and the liquid level in the container can be directly read through the glass plate. And can clean and replace the glass tube without stopping the furnace. When the glass tube is accidentally damaged, use the handle to turn the plugs of the upper and lower stopcock valves through 90° to prevent the medium in the container from continuing to flow out. The bottom of the level gauge is equipped with a drain valve, which is used to discharge the remaining liquid and clean the interior during maintenance.
【The main technical parameters】
Working pressure: ≤1.6Mpa
Working temperature: ≤200℃
Nominal diameter DN: 20, 25
Flange sealing surface type: RF
Applicable medium: non-corrosive medium such as water, oil, steam, etc.
Xinxiang Xinbo Glass Quartz Products Co., Ltd.: is a professional chemical glass instrument production company integrating development, design, production, sales and after-sales service. The company has a modern management team, relying on advanced management methods and service concepts, relying on local government policies, talents, environment and other advantages, has become a well-known enterprise in the industrial glass instrumentation industry. The company’s quartz glass tube, quartz glass sight glass, quartz flange, high borosilicate glass sight glass, tempered glass sight glass, liquid level gauge glass plate, stainless steel flange sight glass and other products have formed the industrial boiler pipeline industry. Serialized products used. The powerful design team can undertake the processing and customization of various non-standard and unconventional glass mirrors and flange mirrors.

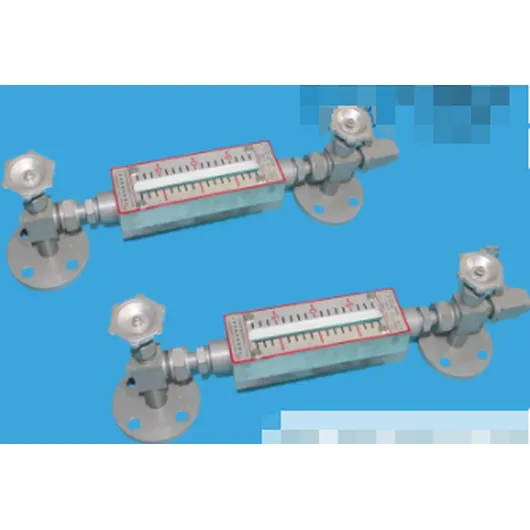

Borosilicate reflex gauge glass/ Transparent Flat Gauge Glass
Products Specifications:
Customized Sizes
MOQ： 10pcs
Samples can be offered
contact us
Tel/whatsapp: +86 13373730761
Email: landlee@sightglassfactory.com

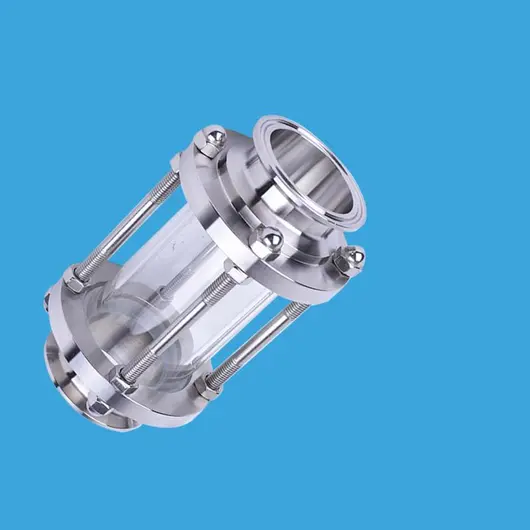

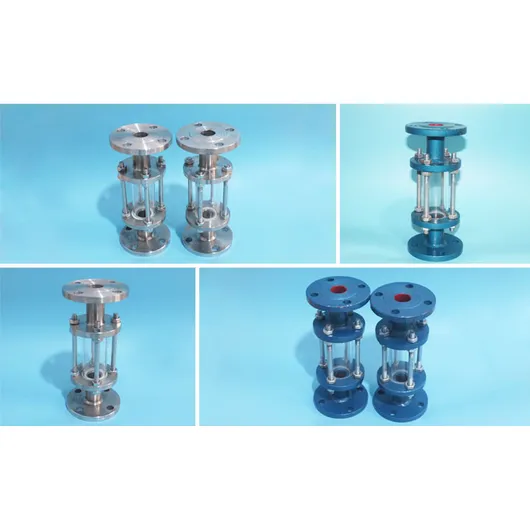

Stainless steel sight glass tube glass tube sight glass: used for draining or receiving the backflow before the tank, cooling water and other liquid pipelines to observe the liquid flow. Valve body materials: carbon steel, stainless steel, rubber lining, fluorine lining, etc. Nominal pressure range: 2.5 and 6 kg/cm2.
Working temperature: metal≤200℃, plastic≤80℃, allowable rapid change temperature 80℃ Nominal diameter: DN15~DN150 The glass material of the sight glass is tempered borosilicate glass, and the temperature difference of tempered borosilicate glass is 180℃.
custom shaped quartz glass
Customized Sizes
MOQ： 10pcs
Samples can be offered
contact us
Tel/whatsapp: +86 13373730761
Email: landlee@sightglassfactory.com
SS flange sight glass with a scraper
contact us
Tel/whatsapp: +86 13373730761
Email: landlee@sightglassfactory.com
Xinxiang Xinbo glass quartz products Co., Ltd.: it is a company specializing in the production of chemical glass instruments and meters integrating development, design, production, sales and after-sales service. The company has a modern management team. With advanced management methods and service concepts and relying on the advantages of local government policies, talents and environment, the company has become a well-known enterprise in the industrial glass instrument industry. The quartz glass tube, quartz glass mirror, quartz flange, high borosilicate glass mirror, tempered glass mirror, liquid level gauge glass plate, stainless steel flange mirror cup and other products produced by the company have formed a series of products used in the industrial boiler pipeline industry. A strong design team can undertake the processing and customization of various non-standard and unconventional glass mirrors, flange mirror cups and other products.
Illuminated flange sight glass
Xinbo lighted sight glass is suitable for the peeping device of petroleum, chemical industry and other industrial equipment with nominal pressure not greater than 1.0MPa, nominal diameter 100~150mm, medium temperature 0~200℃, and maximum sudden change temperature not more than 180℃ to observe the equipment Internal material operation status.
