一、 Product Name
Official name: Flange eccentric impeller sight glass, also commonly known as flange water flow indicator, oil flow observer, pipeline flow sight glass.
二 、 Structural composition

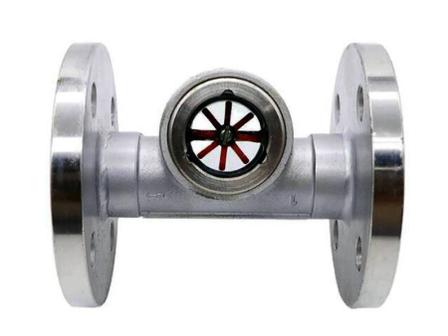

Main valve body: Made of 304/316 stainless steel in the figure, with standard flange plates at both ends, used for docking with pipeline flange bolts, ensuring reliable sealing; There are also carbon steel and cast steel models suitable for ordinary working conditions.
Observation window: The middle part is made of high-temperature resistant tempered glass viewport, which is sealed and pressure resistant, and can visually display the internal red impeller.
Red impeller: Built in medium resistant impeller, the medium will be pushed to rotate by the fluid when it flows through. The red blades have high recognition and the rotation status can be seen from a distance.
Sealing accessories: PTFE/metal gasket, suitable for media such as water, oil, weak acid and alkali.
三、 Working principle
When the liquid/gas medium in the pipeline flows through the valve body, the fluid impact force drives the internal red impeller to rotate;
Uniform rotation of impeller: normal flow of pipeline medium;
Slow rotation of impeller: low flow rate;
Impeller stationary: interrupted, blocked, and without medium, making it easy to quickly determine whether the pipeline is open or closed on site.
四 、 Core role
Visual monitoring of pipeline connectivity: No electronic instruments are required, and the presence and approximate flow rate of the pipeline can be determined with the naked eye;
Working condition safety monitoring: Real time inspection of cooling water circuits, lubrication oil circuits, fire protection pipelines, and chemical pipelines to prevent dry burning, oil and water failure;
Simple flow visualization: Roughly determine the flow rate by the impeller speed to assist in on-site pipeline debugging.
五、 Applicable industries
Industry: chemical, synthetic fiber, petroleum, hydraulic lubrication systems, cooling water circulation pipelines;
Food and medicine: pure water pipeline, liquid medicine delivery pipeline (316 stainless steel sanitary version);
Heating, ventilation, and fire protection: central air conditioning water system, fire sprinkler pipeline;
Energy equipment: boiler cooling, air compressor oil circuit, hydraulic station oil circuit monitoring.
六 、 Specifications and Parameters
Connection method: flange connection (national standard HG/T flange standard), suitable for conventional pipe diameters such as DN25/DN40/DN50/DN80/DN100;
Common materials: valve body made of 304 stainless steel (universal), 316L stainless steel (corrosion-resistant to acid and alkali), carbon steel (low-cost clean water working condition); The impellers are mostly made of nylon/PTFE corrosion-resistant materials;
Pressure and temperature resistance: conventional pressure resistance of 1.0/1.6MPa; Tempered glass windows are suitable for temperatures ranging from -20 ℃ to 180 ℃;
Media adaptation: water, lubricating oil, thermal oil, weak acid and weak alkali liquids, and some gases.
七、 Product advantages
Secure flange connection: suitable for large diameter and high-pressure pipelines, easy to disassemble and maintain;
Visual power free: pure mechanical structure, no need for power supply, available in explosion-proof scenarios;
Corrosion resistant and durable: The stainless steel valve body is not easy to rust and is suitable for humid and chemical environments;
Installation without directional restrictions (eccentric type): Both horizontal and vertical pipelines can be installed.
