Product Description：

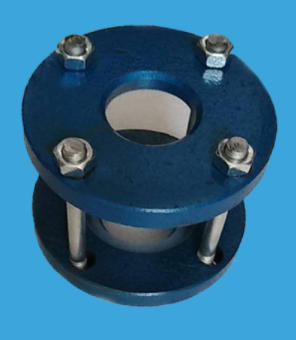

The clip-on mirror is one of the main accessories on the industrial pipeline installation. The clip-on mirror installed on the pipeline can observe the flow reaction of liquid, gas, steam and other media in the pipeline at any time, monitor production, and avoid accidents during the production process. . It is often used in the production pipelines of petroleum, chemical, chemical fiber, pharmaceuticals, etc.
The difference between the clamp mirror and the conventional straight-through mirror is the reduction in the number of fastening screws, that is to say, the pressure is much inferior. Due to the limitation of the structure style, the diameter above DN80 is very rare because such a large diameter is basically not available. What is the use of pressure. And the small caliber is relatively high.
The main material of the clamp mirror is carbon steel 304 stainless steel 316321316L and so on.
The use temperature of the clip-on mirror depends on the material of the window used: tempered glass 0-200 degrees; high borosilicate glass 0-450 degrees; quartz glass 0-600 degrees.
The most commonly used connection method for the clip-on mirror is flange thread welding, etc. Other connection methods can also be customized.
The sealing gasket of the clamp mirror adopts polyethylene PTFE sheet。
